Slope protection is an engineering solution designed to protect slopes from erosion, landslides, or damage caused by water and other loads. This method aims to maintain slope stability, protect infrastructure, and minimize risks to environmental and human safety.

Types of Slope Protection :

  • Vegetation: Using plants to naturally stabilize slopes.
  • Retaining Wall: A concrete or stone structure designed to prevent soil movement.
  • Riprap: A layer of large stones used to protect slopes from water flow.
  • Geotextile and Geogrid: Synthetic materials used to reinforce soil and improve drainage.
  • Soil Nails: A slope stabilization method using steel rods.
  • Gabion: A wire mesh box filled with stones that helps prevent erosion.
  • Shotcrete: A concrete layer that protects slopes from damage.

Soil nails are one of the leading methods in slope protection. This technique involves driving steel rods into the ground to reinforce slopes. Soil nails provide an effective solution for improving slope stability, particularly in areas with limited working space or steep gradients.

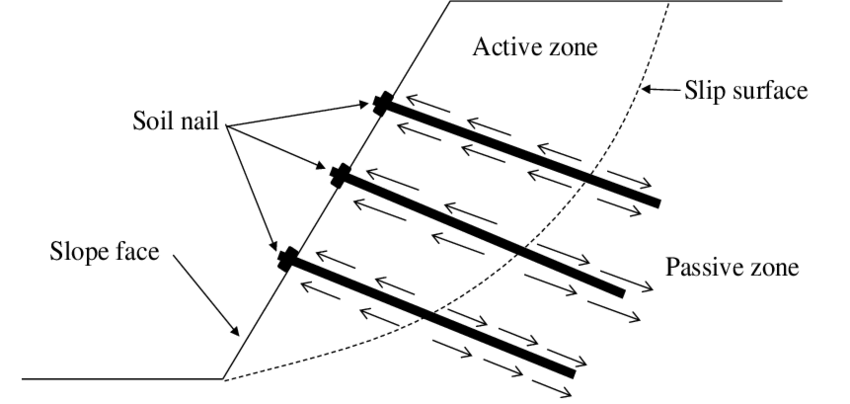

Soil reinforcement is achieved by driving nails of a specific length into the ground at specific intervals. This treatment results in the formation of a coherent gravitational structure that increases the overall shear strength of the soil and helps prevent potential ground displacement.

Steps in the Soil Nail Method
1. Drilling: Drilling holes according to the design.
2. Installation of Steel Bars: Inserting soil nails into the holes.
3. Grout Injection: Filling the holes with grout to reinforce the structure.
4. Surface Coating: Applying additional protection, such as shotcrete.

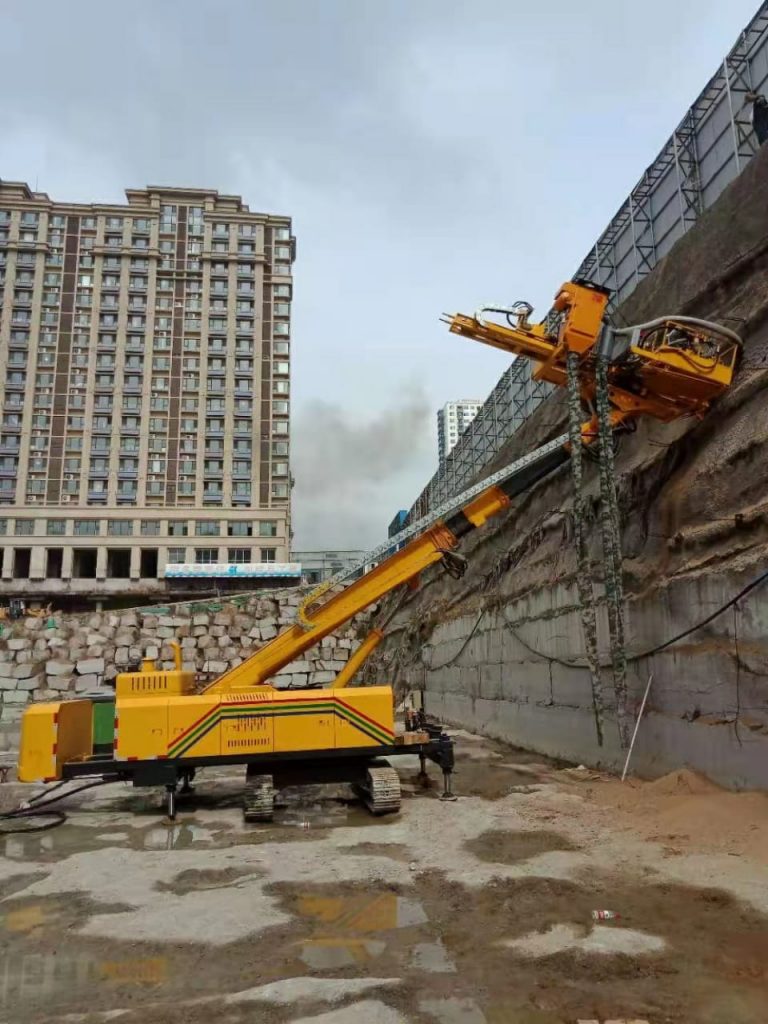

Work Procedure :
1. The slope must be cleared of any debris.
2. Survey and mark the points where soil nailing will be performed.
3. Position the equipment at the first point marked by the survey team.
4. Install the rod and drill bit, then adjust the machine to the specified angle and slope.
5. Continue drilling using compressed air connected to the rod and drill bit.
6. The air compressor will supply compressed air to the machine; once drilling is complete, the soil at the drilling point will be expelled due to the compressed air being supplied.
7. Move the drill bit little by little, adjusting according to the soil’s hardness.
8. Once drilling is complete, pull out all the rods along with the drill bit.
9. Insert the prepared rebar into the drilled hole.

Advantages of the Soil Nail Method :

  • More cost-effective than retaining walls.

  • Flexible application for various soil types.

  • Suitable for areas requiring minimal environmental disruption.
